Place of Origin:
Hunan, China
Brand Name:
SPEO
Model Number:
HKY8037

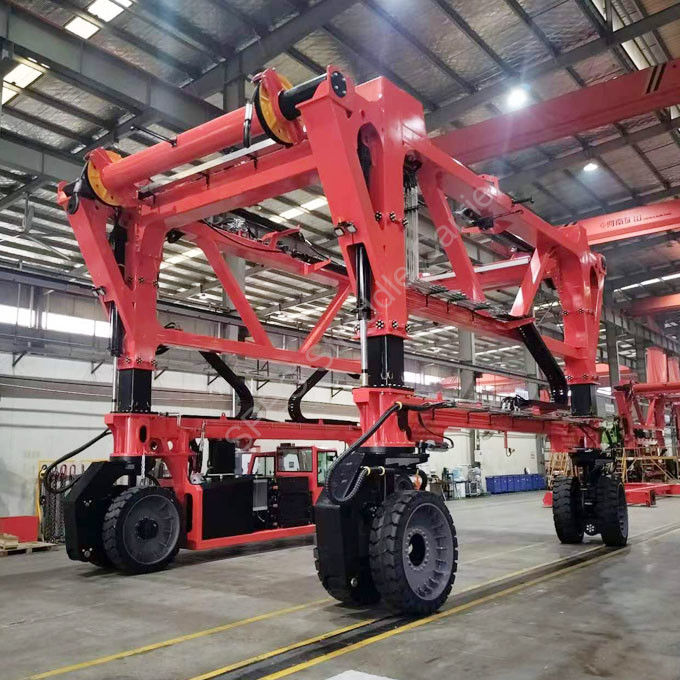

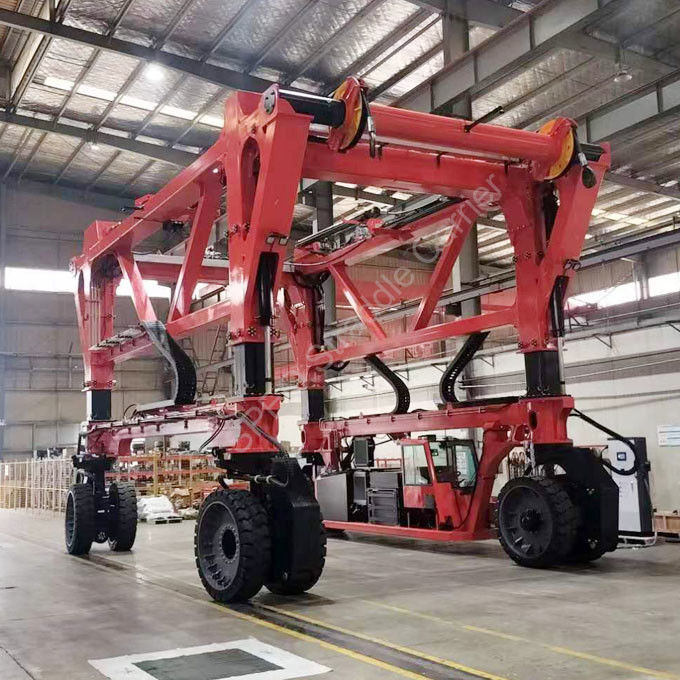

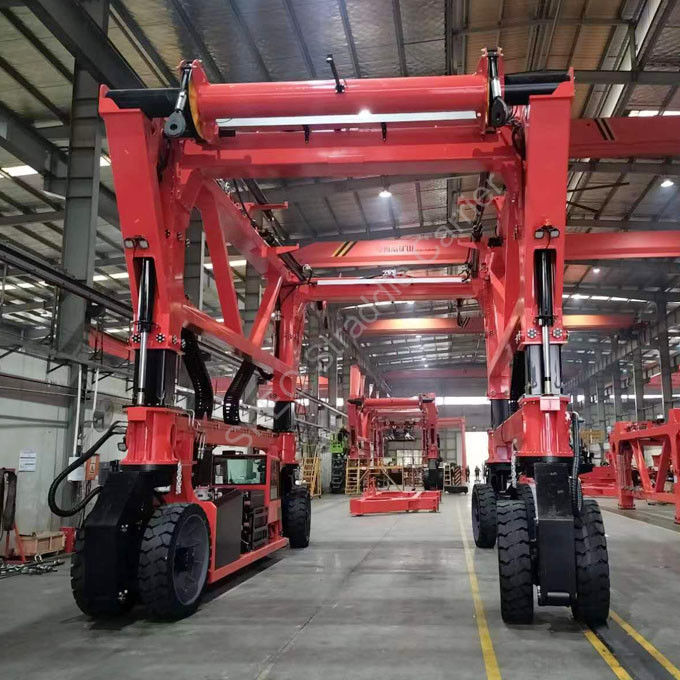

SPEO Straddle Carrier is designed and made by SPEO engineers and workers with many years experience.
1. Highly customized
2. The most cost effective container straddle carrier
3. Less ground requirement than Reach Stacker
4. Solid punctual proof tyres
5. Unique balancing system
6. Optional 20ft 40ft 45ft automatic spreader or frame spreader
7. Cummins engine,Linde hydraulics
| PARAMETERS | HKY8037 |
| Lifting weight | 80T |
| Dimension(Length*Width*Height) | 12000*5900*6400(mm) |
| Inner width | 3700mm |
| Wheel base | 7500mm |
| Duplex lifting height | 1700mm |
| Min.Ground clearance | 300mm |
| Machine weight | 80T |
| Engine(China StageⅢ) | Cummins,129kw |
| Travel Pump | Linde/Danfoss |
| Travel speed(Unladen) | 5km/h |
| Travel Speed(Laden) | 3km/h |
| Turning Radius | 12000mm |
| Gradeability(Unladen/Laden) | 6%/3% |
| Manipulation | Steering wheel( can be romote control) |
| Tires | Solid punctual proof tires |
| Lifting Tools | Oversized Load Spreader |
